NonRising Stem Resilient Seated Gate Valve with Position Ind

Model:
Z45X-16
Size:
DN50-DN600
Pressure:
PN10, PN16
Body Materials:
Ductile Iron GGG40, GGG50
Applicable Medium:
Water etc.
Chat Online
Download PDF

Product Introduction

The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.
Body Material: Ductile Iron GGG40, GGG50
Disc Materials: Ductile Iron Coated with EPDM/NBR
Stem Materials: Carbon Steel, Stainless Steel 416, Stainless Steel 304, Brass, Bronze
Bolt: Carbon Steel, Stainless Steel 304, Stainless Steel 316
Gasket: EPDM, NBR
Cover: Ductile Iron GGG40, GGG50
O-ring: EPDM, NBR, Silicone
Thrust Bearing: Brass
Gland: Ductile Iron GGG40, GGG50
Dust Proof Gasket: EPDM/NBR
Hand Wheel: Ductile Iron GGG40, GGG50
End Connection: Flanged

NonRising Stem Resilient Seated Gate Valve with Position Ind
NonRising Stem Resilient Seated Gate Valve with Position Ind

Product Features

1.The seal is designed with dustproof ring plus three “O”-seal ring, reliable sealing, on-line replaceable.
2.Both gate and aluminum bronze bearing are in inside design good self lubrication ,high strength and can have the aluminum bronze bearing replaced without need to replace the gate integrally, after a long time use.
3.Rubber wrapped gate anti-corrosion, good tightness.
4.Advanced surface treatment, coated with non-toxic epoxy resign static powder, anti-corrosion, pollution-free, can be used drinking water pipeline.
5.The body is designed without gate slot, the smooth passage will not get impurities filling up, more applicable for sewage working condition.
6.The integral seal works reliably. For the high pressure seal, leaving zero leakage under 1.5 times nominal pressure and, for the low pressure one, under 0.02Mpa.
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside, blue RAL 5017 200 Micron think.
Working pressure from -1 to +16 bar and working temperature from -10 to +80℃

Technical Parameters

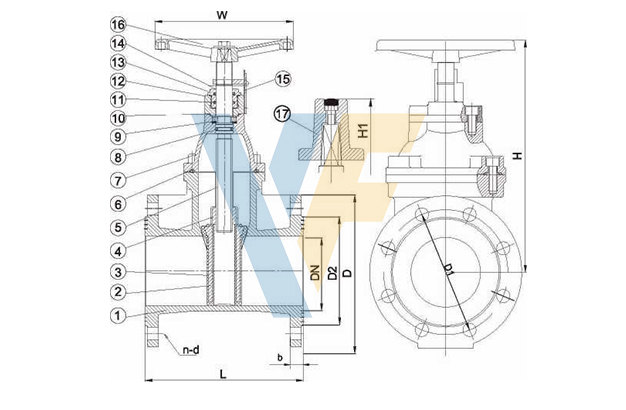

NonRising Stem Resilient Seated Gate Valve with Position Ind

Size L D b EN 1092-2 PN10 EN 1092-2 PN16 H H1 W
F4 F5 D1 D2 n-d D1 D2 n-d
DN40 140 240 150 19 110 84 4-19 110 84 4-19 180 225 160
DN50 150 250 165 19 125 99 4-19 125 99 4-19 195 240 160
DN60 170 270 175 19 135 108 4-19 135 108 4-19 225 265 180
DN65 170 270 185 19 145 118 4-19 145 118 4-19 225 265 180
DN80 180 280 200 19 160 132 8-19 160 132 8-19 255 295 200
DN100 190 300 220 19 180 156 8-19 180 156 8-19 285 325 200
DN125 200 325 250 19 210 184 8-19 210 184 8-19 345 380 220
DN150 210 350 285 19 240 211 8-23 240 211 8-23 385 420 250
DN200 230 400 340 20 295 266 8-23 295 266 12-23 465 500 280
DN250 250 450 400 22 350 319 12-23 355 319 12-28 565 590 320
DN300 270 500 455 24.5 400 370 12-23 410 370 12-28 645 670 350

Technical Standard

1.Design and manufacture according to EN1171, DIN3352, EN1074-1 and 2.
2. Face to face according to EN558-1 Series 14/15, DIN3202 F4/F5
3.Flange drilling according to EN 1092-2, ISO7005-2
4.Pressure test according to EN 12266, ISO5208
5.Shell test pressure: 24 bar, Seat test pressure: 17.6 bar.
