The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.
Body Material: Ductile Iron GGG40, GGG50
Disc Materials: Ductile Iron Coated with EPDM/NBR
Stem Materials: Carbon Steel, Stainless Steel 416, Stainless Steel 304, Brass, Bronze
Bolt: Carbon Steel, Stainless Steel 304, Stainless Steel 316
Gasket: EPDM, NBR
Cover: Ductile Iron GGG40, GGG50
O-ring: EPDM, NBR, Silicone
Thrust Bearing: Brass
Gland: Ductile Iron GGG40, GGG50
Dust Proof Gasket: EPDM/NBR
Hand Wheel: Ductile Iron GGG40, GGG50
End Connection: Flanged
1.The seal is designed with dustproof ring plus three “O”-seal ring, reliable sealing, on-line replaceable.
2.Both gate and aluminum bronze bearing are in inside design good self lubrication ,high strength and can have the aluminum bronze bearing replaced without need to replace the gate integrally, after a long time use.
3.Rubber wrapped gate anti-corrosion, good tightness.
4.Advanced surface treatment, coated with non-toxic epoxy resign static powder, anti-corrosion, pollution-free, can be used drinking water pipeline.
5.The body is designed without gate slot, the smooth passage will not get impurities filling up, more applicable for sewage working condition.
6.The integral seal works reliably. For the high pressure seal, leaving zero leakage under 1.5 times nominal pressure and, for the low pressure one, under 0.02Mpa.

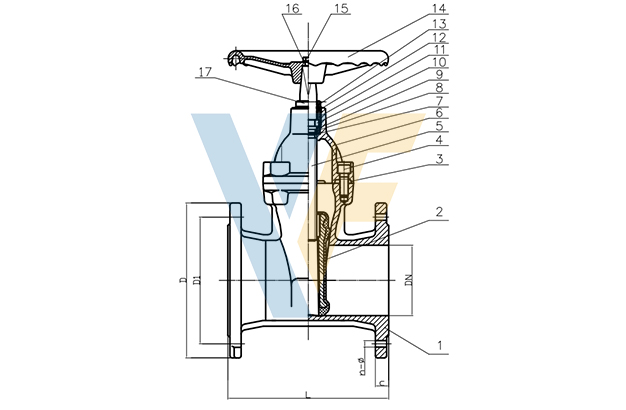

| SIZE | L(mm) | D(mm) | D1(mm) | c(mm) | n-φ | |
| DN | IN | |||||
| 50 | 2" | 178 | 165 | 125 | 20 | 4-φ19 |
| 65 | 2.5" | 190 | 185 | 145 | 22 | 8-φ19 |
| 80 | 3" | 203 | 200 | 160 | 24 | 8-φ19 |
| 100 | 4" | 229 | 235 | 190 | 24 | 8-φ23 |
| 125 | 5" | 254 | 270 | 220 | 26 | 8-φ28 |
| 150 | 6" | 267 | 300 | 250 | 28 | 8-φ28 |
| 200 | 8" | 292 | 360 | 310 | 30 | 12-φ31 |
| 250 | 10" | 330 | 425 | 370 | 32 | 12-φ34 |
1.Design and manufacture according to BS5163.
2. Face to face according to BS5163
3.Flange drilling according to BS5163
4.Pressure test according to BS5146.
